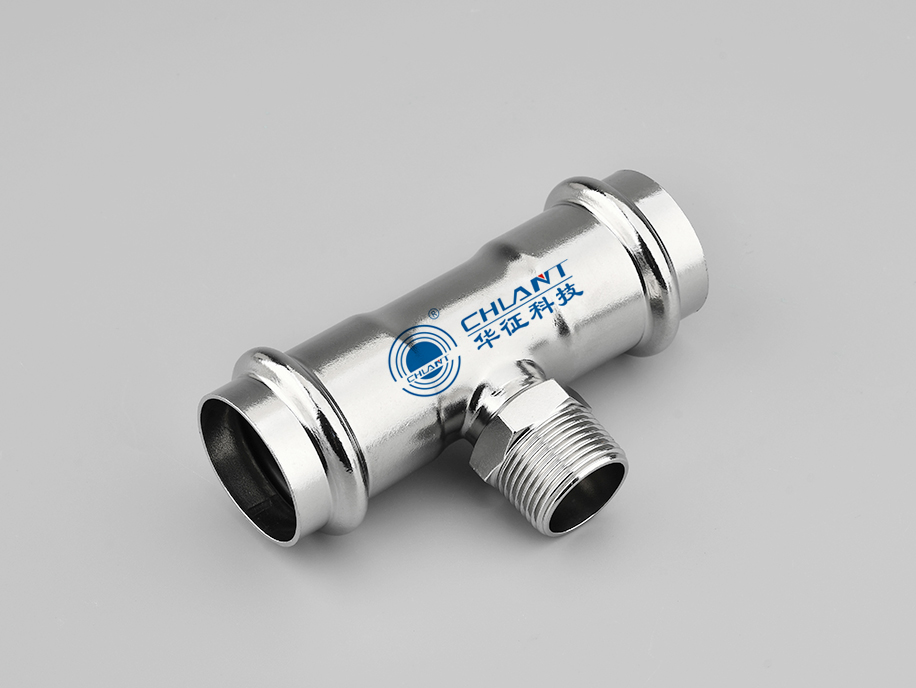

外螺紋三通規(guī)格參數(shù)
| 產(chǎn)品代碼 |
公稱尺寸DN |
I系列外徑(mm) |
II系列外徑(mm) |
| JFTETC-1501 |
15×Rp1/2" |
16×Rp1/2" |
15.88×Rp1/2" |
| JFTETC-2001 |
20×Rp1/2" |
20×Rp1/2" |
22.2×Rp1/2" |
| JFTETC-2002 |
20×Rp3/4" |
20×Rp3/4" |
22.2×Rp3/4" |
| JFTETC-2501 |
25×Rp1/2" |
25.4×Rp1/2" |
28.6×Rp1/2" |
| JFTETC-2502 |
25×Rp3/4" |
25.4×Rp3/4" |
28.6×Rp3/4" |
| JFTETC-2503 |
25×Rp1" |
25.4×Rp1" |
28.6×Rp1" |
| JFTETC-3201 |
32×Rp1/2" |
32×Rp1/2" |
34×Rp1/2" |
| JFTETC-3202 |
32×Rp3/4" |
32×Rp3/4" |
34×Rp3/4" |
| JFTETC-3203 |
32×Rp1" |
32×Rp1" |
34×Rp1" |
| JFTETC-3204 |
32×Rp1-1/4" |
32×Rp1-1/4" |
34×Rp1-1/4" |
| JFTETC-4001 |
40×Rp1/2" |
40×Rp1/2" |
42.7×Rp1/2" |
| JFTETC-4002 |
40×Rp3/4" |
40×Rp3/4" |
42.7×Rp3/4" |
| JFTETC-4003 |
40×Rp1" |
40×Rp1" |
42.7×Rp1" |
| JFTETC-4004 |
40×Rp1-1/4" |
40×Rp1-1/4" |
42.7×Rp1-1/4" |
| JFTETC-4005 |
40×Rp1-1/2" |
40×Rp1-1/2" |
42.7×Rp1-1/2" |
| JFTETC-5001 |
50×Rp1/2" |
50.8×Rp1/2" |
48.6×Rp1/2" |
| JFTETC-5002 |
50×Rp3/4" |
50.8×Rp3/4" |
48.6×Rp3/4" |
| JFTETC-5003 |
50×Rp1" |
50.8×Rp1" |
48.6×Rp1" |
| JFTETC-5004 |
50×Rp1-1/4" |
50.8×Rp1-1/4" |
48.6×Rp1-1/4" |
| JFTETC-5005 |
50×Rp1-1/2" |
50.8×Rp1-1/2" |
48.6×Rp1-1/2" |
| JFTETC-5006 |
50×Rp2" |
50.8×Rp2" |
48.6×Rp2" |
| JFTETC-6002 |
60×Rp3/4" |
63.5×Rp3/4" |
/ |
| JFTETC-6502 |
65×Rp3/4" |
76.1×Rp3/4" |
76.1×Rp3/4" |
| JFTETC-8002 |
80×Rp3/4" |
88.9×Rp3/4" |
88.9×Rp3/4" |
| JFTETC-10002 |
100×Rp3/4" |
101.6×Rp3/4" |
108×Rp3/4" |
?
